AvianVisitors

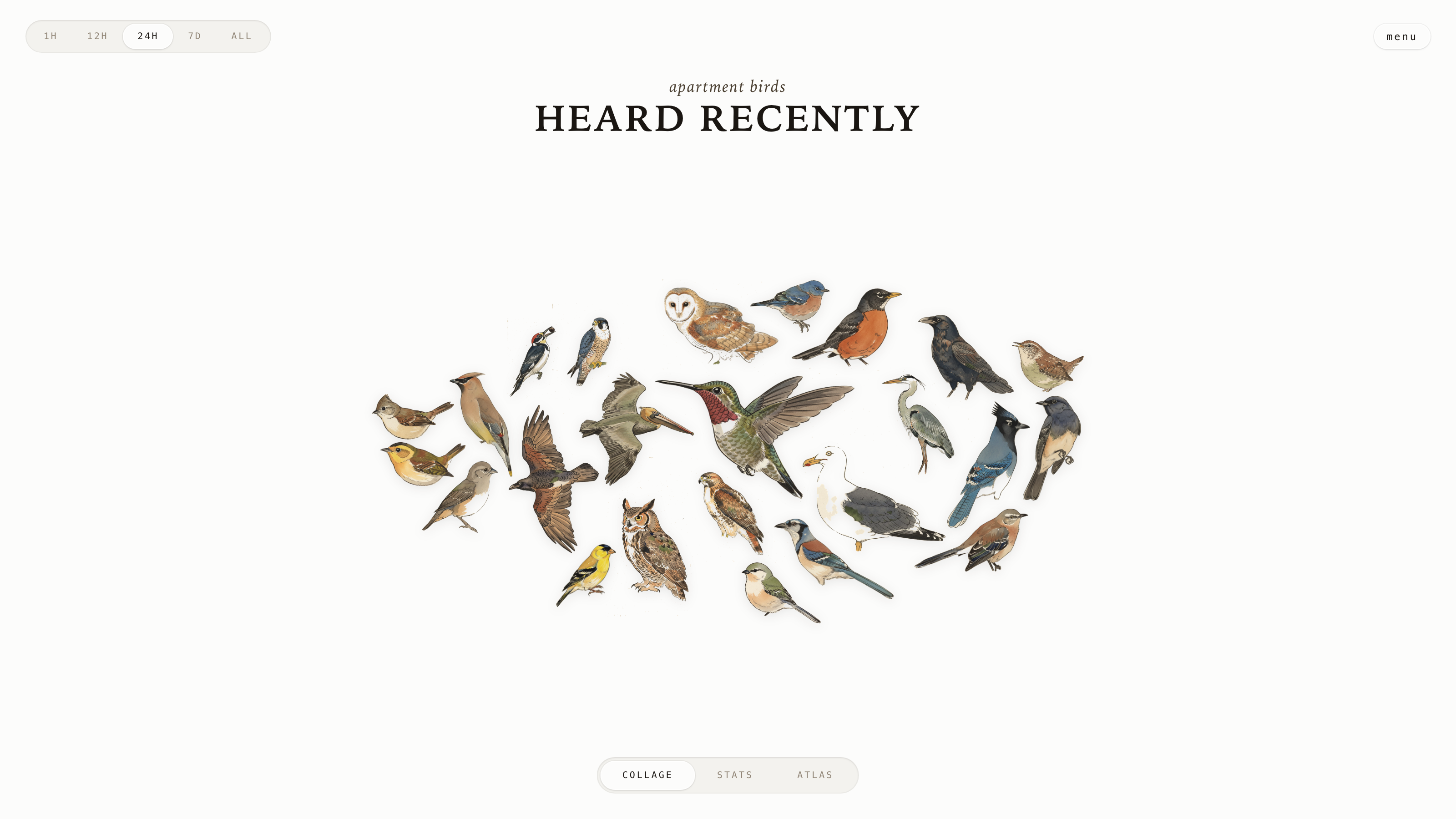

A live bird collage from your apartment window.
A fork of BirdNET-Pi that adds a tile-packed kachō-e collage UI. Listens to your balcony with Cornell's BirdNET, illustrates every detected species in the style of Edo-period Japanese woodblock prints, and renders them sized by call count. See it running at bird.onethreenine.net.
BOM
| Qty | Description | Price | Link |
|---|---|---|---|
| 1 | Raspberry Pi (4B / 5 / Zero 2W) | ~$35–80 | Raspberry Pi |
| 1 | Micro SD Card (≥32 GB) | ~$10 | Amazon |
| 1 | USB lavalier microphone | $14.99 | Amazon |
| 1 | Pi power supply | ~$10 | — |
Optional: a Gemini API key (free tier covers a regional regen) for restyling or adding species, and an eBird API key for filtering the species list to your area.
1. Flash the SD card
Use Raspberry Pi Imager. Pick Raspberry Pi OS Lite (64-bit). In the customisation dialog, set:
- Username (your choice — the installer uses whatever you pick)
- WiFi SSID + password
- Hostname:
birdnet(so it's reachable atbirdnet.local) - Enable SSH with password auth
Boot the Pi.
2. Run the installer
SSH in and run one command:
ssh <your-username>@birdnet.local
curl -s https://raw.githubusercontent.com/Twarner491/AvianVisitors/avian-visitors/newinstaller.sh | bash
The installer clones this fork, sets up BirdNET-Pi (audio capture, model, web UI), and symlinks the AvianVisitors overlay into the Caddy web root. Takes 20–40 minutes. The Pi reboots when done.
Open http://birdnet.local/avian/ from any device on your network. The BirdNET-Pi stock UI sits at http://birdnet.local/.
3. (Optional) Restyle the illustrations
The repo ships with 450 bundled illustrations covering most North-American species. To change the visual style or add region-specific birds:
export GEMINI_API_KEY='your-gemini-key'
# Re-render every species in BirdNET-Pi's model:
python3 ~/BirdNET-Pi/avian/scripts/pregen.py --labels ~/BirdNET-Pi/model/labels.txt --force
# Or only species eBird has observed in your region:
export EBIRD_API_KEY='your-ebird-key'
python3 ~/BirdNET-Pi/avian/scripts/pregen.py \
--labels ~/BirdNET-Pi/model/labels.txt \
--ebird-region US-CA # state, or US-CA-085 for a county
Style is a single editable file at avian/scripts/prompt.template.md. Replace the body, re-run pregen with --force, done.
4. (Optional) Forward off your LAN
See avian/forwarding/ for three independent recipes:
- Cloudflare Tunnel — public HTTPS URL, no port forwarding, optional Cloudflare Access password gate.
- Home Assistant REST sensor — surfaces the latest detection for automations.
- MQTT bridge — publishes every new detection as JSON.
Repo layout
avian/ # everything we add to BirdNET-Pi
├── frontend/ # static HTML/JS/CSS for the collage
├── assets/ # 450 bundled illustrations + cutouts + masks
├── api/ # PHP shims served by BirdNET-Pi's PHP-FPM
├── scripts/ # pregen.py + editable prompt template
└── forwarding/ # optional HA / MQTT / Cloudflare configs
Everything outside avian/ is upstream BirdNET-Pi.
License
CC-BY-NC-SA-4.0, inherited from BirdNET-Pi's upstream license. Non-commercial use only; share-alike on derivatives. See the BirdNET-Pi README for the full Cornell attribution.
